Digital Weight Indicators MSS Series

Mars Scales is a manufacturer of Digital Weight Indicators, Electronic Weighing Scales, Precision Digital Balances, Floor Scales, Bench Scales, Load Cells and Custom Weighing Systems for wide range of weighing applications in the Laboratory, Industrial and Educational markets.
All our Weight Indicators are high quality, heavy duty, reliable and at low cost. Most orders shipped within 24 hours.

SPECIFICATIONS*

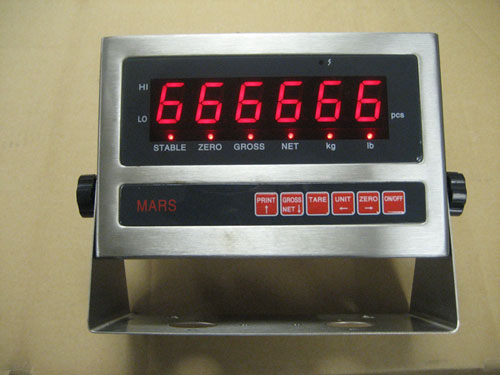

Indicator MSS-1

Click on picture to enlarge

MSS-1 Digital Weight Indicators are designed for general weighing, counting and checkweighing applications.
Easy to read 1" / 25.4 mm high digits LED display, stainless steel enclosure and full front panel set up and calibration makes this indicator a "user frendly" and reliable weighing instrument.

Floor Scales

Balances

MSI Indicators

Crane Scales

Counting Scales

FEATURES*

LED display digits 1" / 25.4 mm high
Stainless steel enclosure
Weighing unit conversion through the keypad: kg / lb
Counting function
Calibration in pounds or kilograms
Auto zero-tracking selectable
Stability indication
Supplies current for 4-350 ohm Load Cells
Can be powered by Adapter or Rechargeable Battery
Power Auto Shut-Off option to conserve the battery
Wall mounting bracket

SPECIFICATIONS*

Display Digits	1" / 25.4 mm high, 6 digits LED
Weighing Units	lb (pounds), kg (kilograms), counting
Internal Resolution	up to 500,000 counts
Display Resolution	up to 20,000 counts, selectable
Display Division	1,2,5,10,20 selectable
Decimal Point	0 to 4 places, selectable
Load Cell Excitation	5 VDC, 4-350 ohm Load Cells
Analog Input Range	from 0.5 mV/V to 3.0 mV/V
Analog Sensitivity	0.5uV/grad min., 1uv/grad recommended
Conversion Rate	20 measures/sec, nominal
Calibration	pushbatton software
Overload Limit	102% of selected Display Resolution
Tare Range	to capacity by subtraction
Key Functions	ON/OFF, ZERO, UNITS, TARE, GROSS/NET, PRINT
Operating Temperature	-10^oC to +40^oC (14^oF to 104^oF)
Power	AC/DC Adapter 9 - 12VDC, 300 - 500mA or Rechargeable Battery Pack
Dimensions	8.2" x 5.5" x 2.9"
Shipping Weight	approx. 4.4lb / 2kg
Warranty	one year limited warranty

*Price and specifications subject to change without prior notice.
